| Brand Name: | VF |
| Model Number: | VF-B |
| Price: | $24-138/pieces |
| Supply Ability: | 1000 Piece/Pieces per Month |

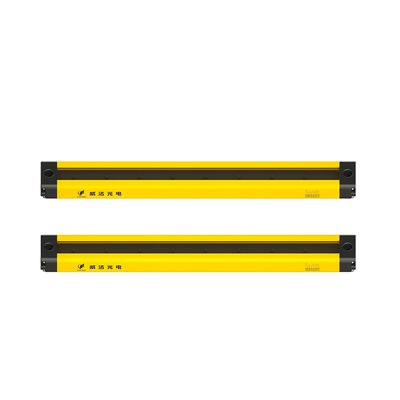

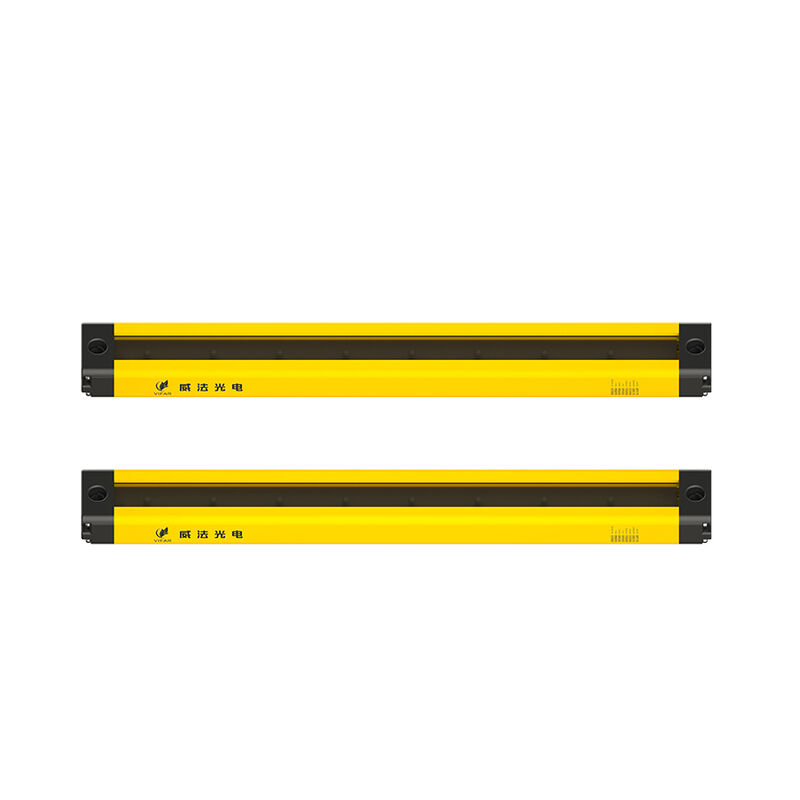

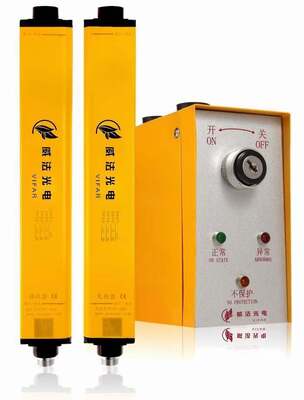

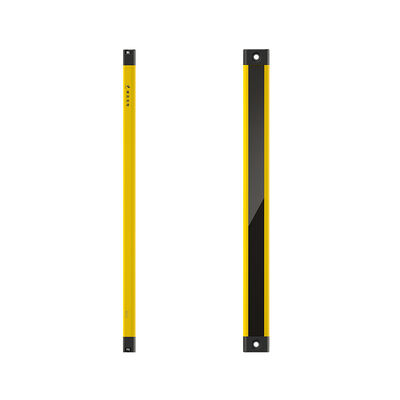

| Product name | NPN Safety Light Curtain Light Curtains Safety Guards Machine Guarding Or Conveyor Belt Objects Detection |
| Model number | VF-B universal Type |
| Protective height | 60-1150mm(Universal) |
| Beam gap | 10/20/30/40mm |
| resolution | 15/25/35/45mm |
| Beams | 4,6,8,10,12 |
| Protective distance | 05:5m,10:10m,15:15m,25:25m,30:30m |
| Output current | <=200mA |
| power | <5W |
| Output signal | NPN/PNP |
| Response time | <5ms |
| cross-section | 30*30mm |
| Operating voltage | DC10-DC32V |
| Light curtain form | Through-Beam |
| Dielectric strength | AC1500V.60S.No breakdown or flicker |
| Work Ambient humidity | Relative humidity at 20 ℃ <85% |
| Anti-light interference | Incidence Angle>5° |
| Certification | CE,RoHS |
| shell protection class | IP54 |
SZIE : 30*35mm /35*50 mm / 32*25 mm/ 32*20 mm/25*12 mm/10*22mm optional

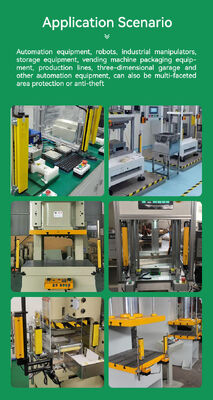

Ideal for equipment with mechanical hazards (rotation, shearing, extrusion) where personnel frequently access dangerous zones (e.g., manual loading/unloading, debugging). It acts as a reliable safety barrier to prevent accidents in industrial environments.
With its combination of robust build, customizable design, and industry-leading safety certifications, this light curtain is the ultimate solution for safeguarding personnel and machinery in high-risk industrial scenarios. Elevate your workspace’s safety standards while ensuring operational efficiency—trusted by manufacturers worldwide.
Q:How to order our product ?
Q: What's your warranty ?
A: One years
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry!
