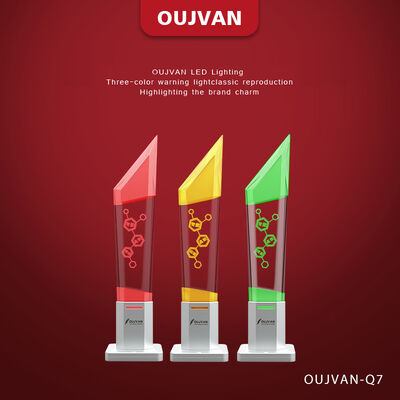

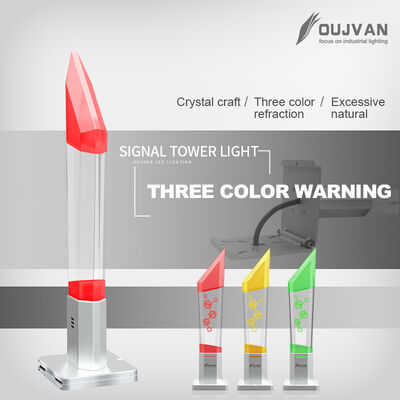

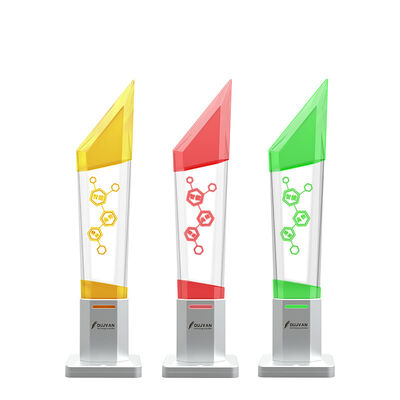

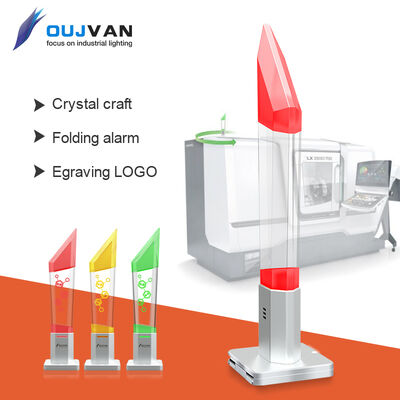

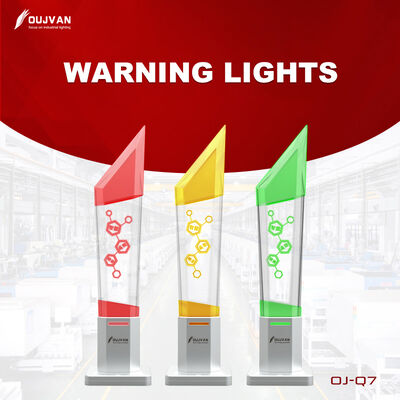

OUJVAN Q7 Patented LED Signal Indicator Light DC24V PNP NPN IP54 Foldable Industrial Warning Lamp

OUJVAN Q7 Patented LED Signal Indicator Light DC24V PNP NPN IP54 Foldable Industrial Warning Lamp

Brand Name: OUJVAN
MOQ: 2 pieces
Price: $14/piece-$20/piece
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
IP Rating:
IP50
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Beam Angle(°):
360
Color Rendering Index(Ra):
80
Emitting Color:
Red, Yellow, Green
Input Voltage(V):
DC 24V
Lamp Luminous Efficiency(lm/w):
80
Lamp Luminous Flux(lm):
400
Lifespan (Hours):
70000
Lighting Solutions Service:
Lighting And Circuitry Design
Product Weight(kg):
0.6
Support Dimmer:
No
Type:
Equipment Indicator Lights
Warranty(Year):
3-Year
Product Name:
12V/24V/220V LED Indicator Light Customizable LED Warning Light
Input Voltage:
DC24V
Protection Grade:
IP50
Length Of The Wire:
0.5m
Buzzer:
>90dB
Shiny Number:
60-70/min
Glow Color:
Red,yellow,green
MOQ:
2 Pcs
Application:
CNC Machine Signal Tower Lighting
Logo:
Customized Logo
Product Description
OUJVAN CNC LED Tower Light 12V/24V/220V LED Indicator Light Customizable LED Warning Light
Product name OUJVAN CNC LED Tower Light 12V/24V/220V LED Indicator Light Customizable LED Warning Light
Model number Q7
Input voltage DC24V
Input current Monochromatic 50mA
Buzzer:15mA
Power 1.2W-2W
Protection grade IP50
Length of the wire 0.5m
Light body color Silver
Light source Patch 2835 LED
Light life 70000 hours
Surface temperature <50℃
Buzzer >90dB
Shiny number 60-70/min
Material lampshade:PMMA
Lamp shell:Aluminum Alloy
Light Angle 360°
Glow color red,yellow,green
Certification CE, RoHS
Environment temperature -20~45℃
Storage temperature -40~70℃
Environmental humidity 10~90%
Store humidity 10~90%
Core Information
  • Type: LED Q7 (with utility model patent)
  • Applications: Automation equipment, security inspection systems, LED packaging machines, alarm systems, SMT equipment, CNC machine tools, engraving machines, industrial and mining equipment, etc.
Features & Advantages
  • Branding Customization: Lamp body supports LOGO customization to align with corporate branding.
  • Audible Alerts: Built-in buzzer with >95dB volume ensures warnings are heard in noisy industrial settings.
  • Foldable Design: Can be folded 90 degrees, enabling easy transportation and flexible installation.
  • LED Performance: Uses high-brightness LED patches with large viewing angles and low thermal resistance for reliable, long-lasting operation.
Technical Specifications
  • Current: One color: 50mA; Buzzer: 15mA
  • Flash Frequency: 60-70 Hz/min
  • IP Rating: IP54 (dust and water jet protection)
  • Temperature Range: <60°C
  • Lifespan: 50,000H
  • Material: Body: AL; Lens: PMMA
  • Installation: Fixed by screw
Coding Principle (OUJVAN-Q7 Series, by inference)

(Note: Coding logic aligns with OUVJAN’s series design, ensuring consistency for configuration)

  1. Model No: Q7
  2. Layer: 1 (one-layer)
  3. Mounting: A (Foldable type)
  4. Voltage: 02 (DC24V)
  5. Function: Options include Steady (B), Steady with buzzer (F)
  6. Connect Type: T (PNP&NPN compatible)
  7. Color: R (Red), Y (Yellow), G (Green)
Value Proposition

The patent-protected OUVJAN-Q7 integrates customized branding, durable LED technology, and a foldable structure to deliver clear visual and audible signaling for diverse industrial applications. It stands out with its unique angular design, making it both a functional tool and a brand-enhancing component for equipment.
