| Brand Name: | VIFAR |
| Model Number: | VF-A Series |
| MOQ: | 1 Set |
| Price: | USD 32 - 96 / Set |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 5000 Sets per Month |

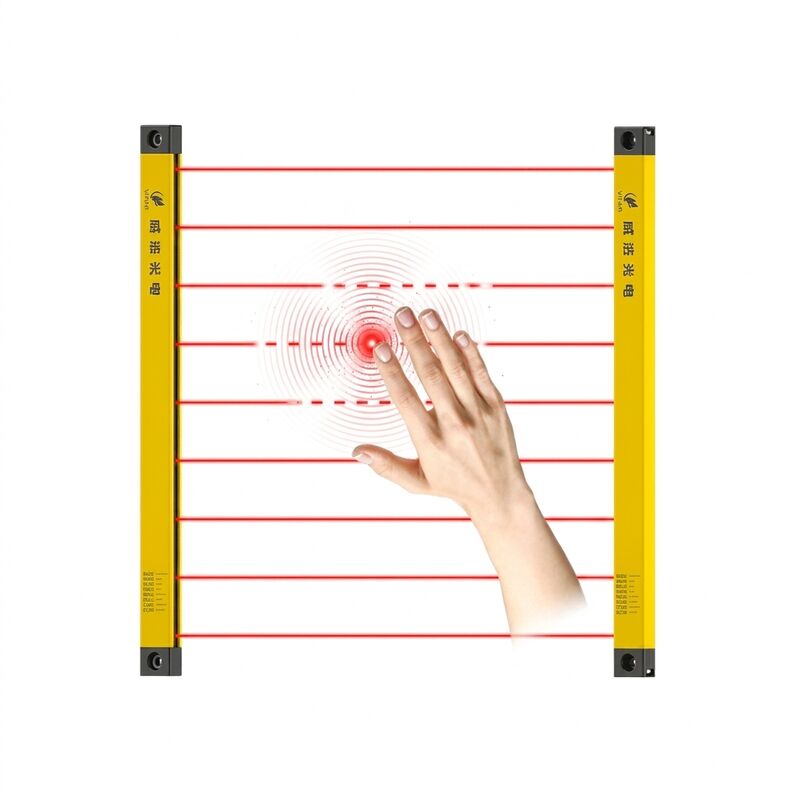

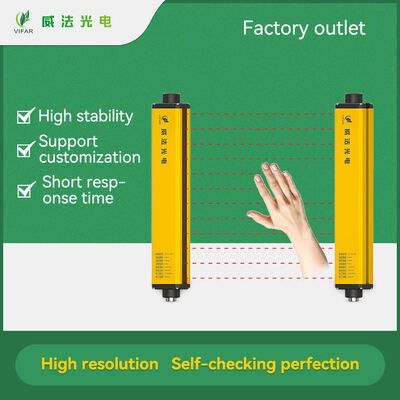

The VF-A universal safety light curtain is the heavy-duty reference model of the VIFAR range. A 50 x 35 mm anodized aluminium extrusion carries the optical boards in a rigid closed profile that resists impact, vibration and electrical noise on press brakes, stamping centres and large forming equipment. Four beam gaps, protection heights from 60 to 1880 mm and a 30 m cascading capability let one series guard an entire production cell without mixing product families, which simplifies spare-part stock for European, North American and Southeast Asian machine builders.
Key Features| Parameter | Specification |
|---|---|
| Protection height | 60 - 1880 mm (universal range) |
| Beam gap (D) | 10 / 20 / 30 / 40 mm |
| Resolution | 15 / 25 / 35 / 45 mm |
| Number of beams | 4 to 56 beams, 2-beam increments |
| Housing cross section | 50 x 35 mm |
| Supply voltage | DC 10 - 30 V |
| Response time | 5 ms |
| Protective distance | 5 m / 10 m / 15 m / 25 m options |
| Output signal | PNP / NPN selectable, NC / NO combinations |
| Light curtain form | Through-beam, transmitter and receiver pair |
| Power consumption | Below 5 W |
| Output current | Up to 200 mA |
| Insulation resistance | 100 MΩ or more |
| Dielectric strength | AC 1500 V, 60 s, no breakdown or flicker |
| Synchronization | Line synchronization or optical synchronization |
| Cascading length | Up to 30 m |
| Blind areas | A1 22 mm upper cover, A2 20 mm lower cover |
| Operating temperature | -10 to +55 ℃ |
| Operating humidity | 85% RH maximum at 20 ℃ |
| Protection class | IP50 / IP54 |
| Housing material | Anodized aluminium alloy profile |
| Cables | Transmitter 2.5 m, receiver 3.5 m |
| Mounting | Side bracket standard, punch-press bracket or T-screw optional |
| Beams | Series A (Beam gap 10 mm) Model / H / L |
Series B (Beam gap 20 mm) Model / H / L |
Series C (Beam gap 30 mm) Model / H / L |
Series D (Beam gap 40 mm) Model / H / L |
|---|---|---|---|---|
| 4 | - | VF-A04B H 60 mm L 133 mm | VF-A04C H 90 mm L 178 mm | VF-A04D H 120 mm L 213 mm |
| 6 | - | VF-A06B H 100 mm L 173 mm | VF-A06C H 150 mm L 238 mm | VF-A06D H 200 mm L 293 mm |
| 8 | VF-A08A H 70 mm L 140 mm | VF-A08B H 140 mm L 213 mm | VF-A08C H 210 mm L 298 mm | VF-A08D H 280 mm L 373 mm |
| 10 | VF-A10A H 90 mm L 160 mm | VF-A10B H 180 mm L 253 mm | VF-A10C H 270 mm L 358 mm | VF-A10D H 360 mm L 453 mm |
| 12 | VF-A12A H 110 mm L 180 mm | VF-A12B H 220 mm L 293 mm | VF-A12C H 330 mm L 418 mm | VF-A12D H 440 mm L 533 mm |
| 14 | VF-A14A H 130 mm L 200 mm | VF-A14B H 260 mm L 333 mm | VF-A14C H 390 mm L 478 mm | VF-A14D H 520 mm L 613 mm |
| 16 | VF-A16A H 150 mm L 220 mm | VF-A16B H 300 mm L 373 mm | VF-A16C H 450 mm L 538 mm | VF-A16D H 600 mm L 693 mm |
| 18 | VF-A18A H 170 mm L 240 mm | VF-A18B H 340 mm L 413 mm | VF-A18C H 510 mm L 598 mm | VF-A18D H 680 mm L 773 mm |
| 20 | VF-A20A H 190 mm L 260 mm | VF-A20B H 380 mm L 453 mm | VF-A20C H 570 mm L 658 mm | VF-A20D H 760 mm L 853 mm |
| 22 | VF-A22A H 210 mm L 280 mm | VF-A22B H 420 mm L 493 mm | VF-A22C H 630 mm L 718 mm | VF-A22D H 840 mm L 933 mm |
| 24 | VF-A24A H 230 mm L 300 mm | VF-A24B H 460 mm L 533 mm | VF-A24C H 690 mm L 778 mm | VF-A24D H 920 mm L 1013 mm |
| 26 | VF-A26A H 250 mm L 320 mm | VF-A26B H 500 mm L 573 mm | VF-A26C H 750 mm L 838 mm | VF-A26D H 1000 mm L 1093 mm |
| 28 | VF-A28A H 270 mm L 340 mm | VF-A28B H 540 mm L 613 mm | VF-A28C H 810 mm L 898 mm | VF-A28D H 1080 mm L 1173 mm |
| 30 | VF-A30A H 290 mm L 360 mm | VF-A30B H 580 mm L 653 mm | VF-A30C H 870 mm L 958 mm | VF-A30D H 1160 mm L 1253 mm |
| 32 | VF-A32A H 310 mm L 380 mm | VF-A32B H 620 mm L 693 mm | VF-A32C H 930 mm L 1018 mm | VF-A32D H 1240 mm L 1333 mm |
| 34 | VF-A34A H 330 mm L 400 mm | VF-A34B H 660 mm L 733 mm | VF-A34C H 990 mm L 1078 mm | VF-A34D H 1320 mm L 1413 mm |
| 36 | VF-A36A H 350 mm L 420 mm | VF-A36B H 700 mm L 773 mm | VF-A36C H 1050 mm L 1138 mm | VF-A36D H 1400 mm L 1493 mm |
| 38 | VF-A38A H 370 mm L 440 mm | VF-A38B H 740 mm L 813 mm | VF-A38C H 1110 mm L 1198 mm | VF-A38D H 1480 mm L 1573 mm |
| 40 | VF-A40A H 390 mm L 460 mm | VF-A40B H 780 mm L 853 mm | VF-A40C H 1170 mm L 1258 mm | VF-A40D H 1560 mm L 1653 mm |
| 42 | VF-A42A H 410 mm L 480 mm | VF-A42B H 820 mm L 893 mm | VF-A42C H 1230 mm L 1318 mm | VF-A42D H 1640 mm L 1733 mm |
| 44 | VF-A44A H 430 mm L 500 mm | VF-A44B H 860 mm L 933 mm | VF-A44C H 1290 mm L 1378 mm | VF-A44D H 1720 mm L 1813 mm |
| 46 | VF-A46A H 450 mm L 520 mm | VF-A46B H 900 mm L 973 mm | VF-A46C H 1350 mm L 1438 mm | VF-A46D H 1800 mm L 1893 mm |
| 48 | VF-A48A H 470 mm L 540 mm | VF-A48B H 940 mm L 1013 mm | VF-A48C H 1410 mm L 1498 mm | VF-A48D H 1880 mm L 1973 mm |
| 50 | VF-A50A H 490 mm L 560 mm | VF-A50B H 980 mm L 1053 mm | VF-A50C H 1470 mm L 1558 mm | VF-A50D H 1960 mm L 2053 mm |
| 52 | VF-A52A H 510 mm L 580 mm | VF-A52B H 1020 mm L 1093 mm | VF-A52C H 1530 mm L 1618 mm | VF-A52D H 2040 mm L 2133 mm |
| 54 | VF-A54A H 530 mm L 600 mm | - | - | - |
| 56 | VF-A56A H 550 mm L 620 mm | - | - | - |
Model code VF-A + beam count + beam-gap letter (A = 10 mm, B = 20 mm, C = 30 mm, D = 40 mm). H is the protective height and L is the total housing length including both end covers. Every two additional optical axes add 2 x beam gap to H and L, so any intermediate height inside the tabulated range can be quoted without a new drawing.

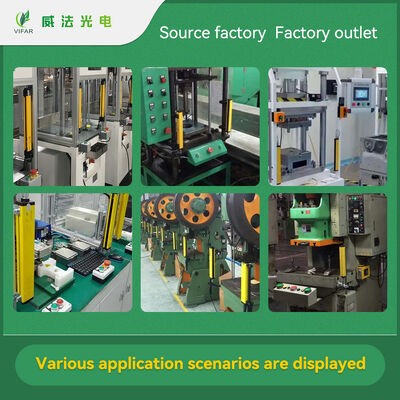

Application and Industry ScenariosTypical installations include power presses and press brakes, stamping and deep-drawing cells, hydraulic and pneumatic presses, robotic welding cells, palletizers, shearing machines, bending centres, transfer lines, three-dimensional parking systems and perimeter guarding around automated storage. The long protective distance and 30 m cascade make the series suitable for wide openings where a single pair cannot span the hazard, and for retrofit projects in Europe and Southeast Asia where an existing machine guard has to be upgraded to a Type 4 barrier without changing the machine frame.
Selection and Installation Notes| Question | Answer |
|---|---|
| Can one light curtain protect several openings? | Yes. Up to 30 m of cascading is supported, so several pairs can be wired as one protective field and evaluated by a single safety relay. |
| Which output type should a European machine builder order? | PNP is the usual choice for European and North American safety relays and PLC safety inputs; NPN is common for Asian control cabinets. Both are available from the same series. |
| Is a mirror column needed for U-shaped guards? | Yes, deflection mirrors can be added to route the beam around corners; the optical synchronization mode is recommended for such layouts. |
| What is the delivery time for non-standard heights? | Standard heights ship in 7 to 15 days. Custom lengths inside the 60 to 1880 mm range are produced on the same line and normally add three working days. |
| Are certificates supplied with the shipment? | Each set is shipped with a CE declaration, wiring diagram, mounting manual and test report; ISO9001 and RoHS documents are provided on request. |

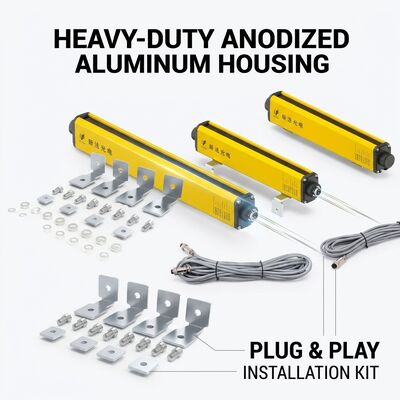

Every set is packed as a transmitter and receiver pair in a rigid carton with EPE foam, together with two mounting brackets, M6 screws, signal cables, a manual and a test report. Cartons are export-grade and can be palletized for container loading. Each unit passes 22 incoming-material inspections, 15 in-process quality controls and 7 OBA checks before OQA release, and the factory runs environmental, radio-wave interference, electrostatic, housing-strength, RoHS, salt-spray and outdoor vibration tests on the production sample.
