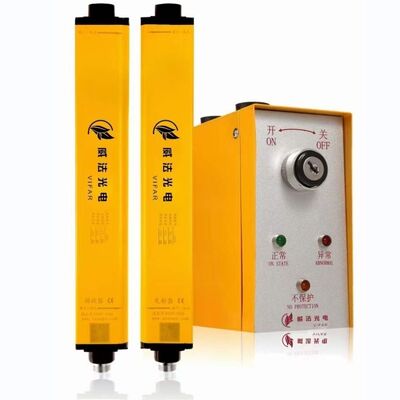

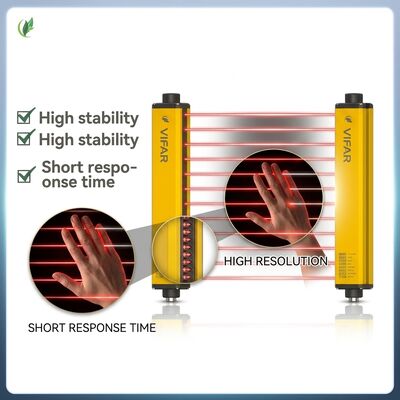

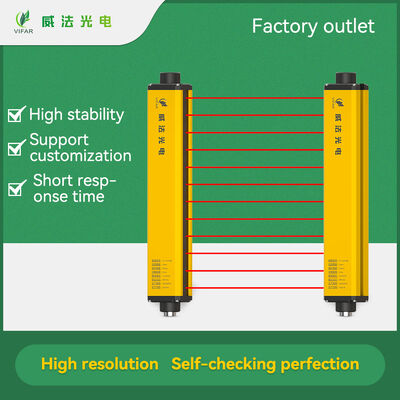

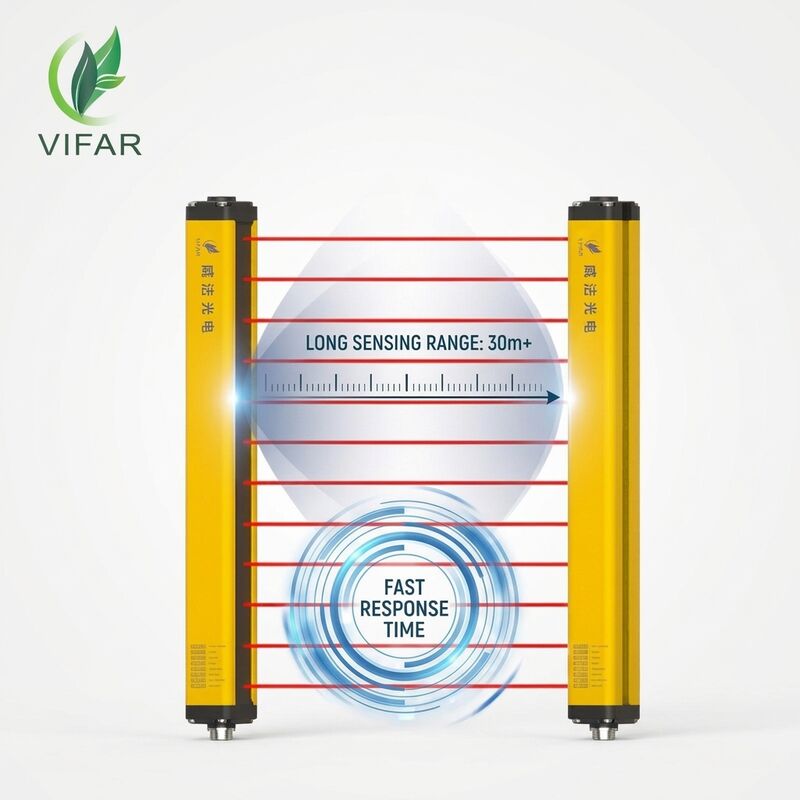

The VF-B slim safety light curtain answers the most common request from injection molding, servo press and automation integrators: a compact 30 x 30 mm profile that still delivers full protective height and a solid 5 m cascade. The slim aluminium extrusion fits inside machine frames and guard doors where a 50 mm housing would foul the tooling, while the yellow anodized finish (silver optional) keeps the protective field visible on the shop floor and matches the safety colour convention used by European and Southeast Asian factories.

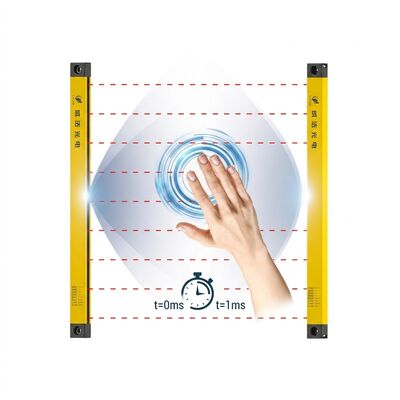

Key Features| Parameter | Specification |
|---|---|
| Protection height | 60 - 1880 mm (universal range) |
| Beam gap (D) | 10 / 20 / 30 / 40 mm |
| Resolution | 15 / 25 / 35 / 45 mm |
| Number of beams | 4 to 56 beams, 2-beam increments |
| Housing cross section | 30 x 30 mm |
| Housing colour | Yellow anodized standard, silver optional |
| Supply voltage | DC 10 - 30 V |
| Response time | Less than 5 ms |
| Protective distance | 3 m / 5 m options |
| Output signal | PNP / NPN selectable, NC / NO combinations |
| Light curtain form | Through-beam, transmitter and receiver pair |
| Power consumption | Below 5 W |
| Output current | Up to 200 mA |
| Insulation resistance | 100 MΩ or more |
| Dielectric strength | AC 1500 V, 60 s, no breakdown or flicker |
| Synchronization | Line synchronization or optical synchronization |
| Cascading length | Up to 5 m |
| Blind areas | A1 12.5 mm upper cover, A2 13.5 mm lower cover |
| Operating temperature | -10 to +55 ℃ |
| Operating humidity | 85% RH maximum at 20 ℃ |
| Protection class | IP52 standard, IP65 on request |
| Housing material | Anodized aluminium alloy profile |
| Cables | Transmitter 2.5 m, receiver 3.5 m |
| Mounting | Side mount standard, up-down mount, punch-press bracket or T-screw optional |
| Beams | Series A (Beam gap 10 mm) Model / H / L |
Series B (Beam gap 20 mm) Model / H / L |
Series C (Beam gap 30 mm) Model / H / L |
Series D (Beam gap 40 mm) Model / H / L |
|---|---|---|---|---|
| 4 | - | VF-B04B H 60 mm L 117 mm | VF-B04C H 90 mm L 162 mm | VF-B04D H 120 mm L 197 mm |
| 6 | - | VF-B06B H 100 mm L 157 mm | VF-B06C H 150 mm L 222 mm | VF-B06D H 200 mm L 277 mm |
| 8 | VF-B08A H 70 mm L 124 mm | VF-B08B H 140 mm L 197 mm | VF-B08C H 210 mm L 282 mm | VF-B08D H 280 mm L 357 mm |
| 10 | VF-B10A H 90 mm L 144 mm | VF-B10B H 180 mm L 237 mm | VF-B10C H 270 mm L 342 mm | VF-B10D H 360 mm L 437 mm |
| 12 | VF-B12A H 110 mm L 164 mm | VF-B12B H 220 mm L 277 mm | VF-B12C H 330 mm L 402 mm | VF-B12D H 440 mm L 517 mm |
| 14 | VF-B14A H 130 mm L 184 mm | VF-B14B H 260 mm L 317 mm | VF-B14C H 390 mm L 462 mm | VF-B14D H 520 mm L 597 mm |
| 16 | VF-B16A H 150 mm L 204 mm | VF-B16B H 300 mm L 357 mm | VF-B16C H 450 mm L 522 mm | VF-B16D H 600 mm L 677 mm |
| 18 | VF-B18A H 170 mm L 224 mm | VF-B18B H 340 mm L 397 mm | VF-B18C H 510 mm L 582 mm | VF-B18D H 680 mm L 757 mm |
| 20 | VF-B20A H 190 mm L 244 mm | VF-B20B H 380 mm L 437 mm | VF-B20C H 570 mm L 642 mm | VF-B20D H 760 mm L 837 mm |
| 22 | VF-B22A H 210 mm L 264 mm | VF-B22B H 420 mm L 477 mm | VF-B22C H 630 mm L 702 mm | VF-B22D H 840 mm L 917 mm |
| 24 | VF-B24A H 230 mm L 284 mm | VF-B24B H 460 mm L 517 mm | VF-B24C H 690 mm L 762 mm | VF-B24D H 920 mm L 997 mm |
| 26 | VF-B26A H 250 mm L 304 mm | VF-B26B H 500 mm L 557 mm | VF-B26C H 750 mm L 822 mm | VF-B26D H 1000 mm L 1077 mm |
| 28 | VF-B28A H 270 mm L 324 mm | VF-B28B H 540 mm L 597 mm | VF-B28C H 810 mm L 882 mm | VF-B28D H 1080 mm L 1157 mm |
| 30 | VF-B30A H 290 mm L 344 mm | VF-B30B H 580 mm L 637 mm | VF-B30C H 870 mm L 942 mm | VF-B30D H 1160 mm L 1237 mm |
| 32 | VF-B32A H 310 mm L 364 mm | VF-B32B H 620 mm L 677 mm | VF-B32C H 930 mm L 1002 mm | VF-B32D H 1240 mm L 1317 mm |
| 34 | VF-B34A H 330 mm L 384 mm | VF-B34B H 660 mm L 717 mm | VF-B34C H 990 mm L 1062 mm | VF-B34D H 1320 mm L 1397 mm |
| 36 | VF-B36A H 350 mm L 404 mm | VF-B36B H 700 mm L 757 mm | VF-B36C H 1050 mm L 1122 mm | VF-B36D H 1400 mm L 1477 mm |
| 38 | VF-B38A H 370 mm L 424 mm | VF-B38B H 740 mm L 797 mm | VF-B38C H 1110 mm L 1182 mm | VF-B38D H 1480 mm L 1557 mm |
| 40 | VF-B40A H 390 mm L 444 mm | VF-B40B H 780 mm L 837 mm | VF-B40C H 1170 mm L 1242 mm | VF-B40D H 1560 mm L 1637 mm |
| 42 | VF-B42A H 410 mm L 464 mm | VF-B42B H 820 mm L 877 mm | VF-B42C H 1230 mm L 1302 mm | VF-B42D H 1640 mm L 1717 mm |
| 44 | VF-B44A H 430 mm L 484 mm | VF-B44B H 860 mm L 917 mm | VF-B44C H 1290 mm L 1362 mm | VF-B44D H 1720 mm L 1797 mm |
| 46 | VF-B46A H 450 mm L 504 mm | VF-B46B H 900 mm L 957 mm | VF-B46C H 1350 mm L 1422 mm | VF-B46D H 1800 mm L 1877 mm |
| 48 | VF-B48A H 470 mm L 524 mm | VF-B48B H 940 mm L 997 mm | VF-B48C H 1410 mm L 1482 mm | VF-B48D H 1880 mm L 1957 mm |
| 50 | VF-B50A H 490 mm L 544 mm | VF-B50B H 980 mm L 1037 mm | VF-B50C H 1470 mm L 1542 mm | VF-B50D H 1960 mm L 2037 mm |
| 52 | VF-B52A H 510 mm L 564 mm | VF-B52B H 1020 mm L 1077 mm | VF-B52C H 1530 mm L 1602 mm | VF-B52D H 2040 mm L 2117 mm |
| 54 | VF-B54A H 530 mm L 584 mm | - | - | - |
| 56 | VF-B56A H 550 mm L 604 mm | - | - | - |
Model code VF-B + beam count + beam-gap letter (A = 10 mm, B = 20 mm, C = 30 mm, D = 40 mm). H is the protective height, L the total housing length including end covers. Each additional pair of optical axes adds 2 x beam gap to both dimensions.

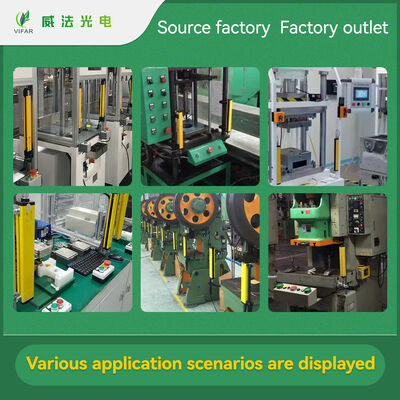

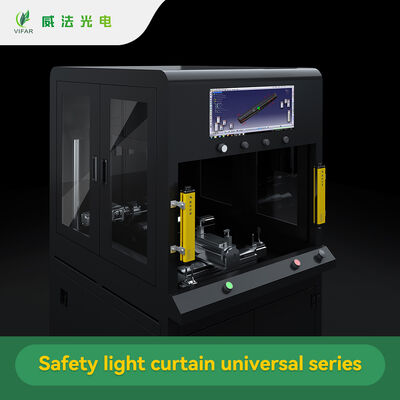

Application and Industry ScenariosThe slim body is specified for injection molding machines, hydraulic and pneumatic presses, servo presses, packaging lines, labeling and filling equipment, robot cells with restricted frame space, vending and storage equipment, and three-dimensional garages. Integrators in Germany, Italy, Poland, Vietnam and Thailand use the series when a machine frame has already been designed around a narrow guard channel and a later safety upgrade must not require mechanical rework.
Selection and Installation Notes| Question | Answer |
|---|---|
| How does the VF-B differ from the VF-A? | The VF-B uses a 30 x 30 mm slim housing with a 5 m cascade for medium automation, while the VF-A uses a 50 x 35 mm impact-resistant housing with a 30 m cascade for large equipment. |
| Can the yellow housing be supplied in silver? | Yes. Silver anodized is a standard alternative and can be mixed within one order. |
| What cable length comes with the set? | A 2.5 m transmitter cable and a 3.5 m receiver cable are included; longer cables can be quoted. |
| Is a muting function available? | Muting is handled by the machine controller through the NC/NO outputs; the curtain itself provides clean transistor outputs for that purpose. |
| How is the unit tested before shipment? | Each pair is powered, aligned and function-tested with an opaque test rod matched to its resolution, then packed with a test report. |

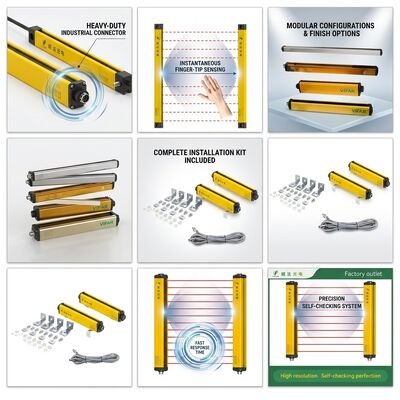

The set is delivered as a matched transmitter and receiver pair in a reinforced carton with EPE foam, two side brackets, M6 screws, cables, a manual and a test report. Cartons can be palletized for container shipment. Production follows the same 22 incoming inspections, 15 in-process quality controls and 7 OBA checks used across the VIFAR range, with radio-wave interference, electrostatic, salt-spray and vibration tests performed on the production sample.
