Machine Tower Lamp
>

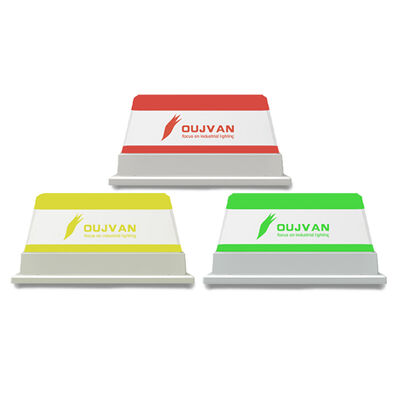

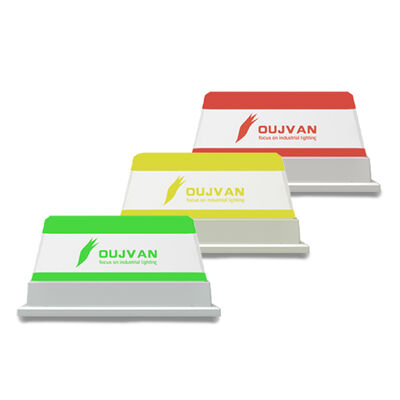

RYG Color LED Signal Tower Light CNC Machine With Customization And 360° Beam Angle

RYG Color LED Signal Tower Light CNC Machine With Customization And 360° Beam Angle

Brand Name: OUJVAN
MOQ: 2 pieces
Price: $23/pieces 2-99 pieces
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Color Temperature(CCT):
RYG
IP Rating:
IP50
Lamp Body Material:
PMMA
Light Source:
LED
Beam Angle(°):
360
Color Rendering Index(Ra):
80
Emitting Color:
Red, Yellow, Green
Input Voltage(V):
DC24V
Lamp Luminous Efficiency(lm/w):
80
Lamp Luminous Flux(lm):
400
Lifespan (Hours):
70000
Product Weight(kg):
0.7
Support Dimmer:
No
Type:
Equipment Indicator Lights
Warranty(Year):
3-Year
Product Name:
Tri-color Custom For Designs Stack Light Durable And Elegant
Input Voltage:
DC24V AC220V Optional
Protection Grade:
IP50
Length Of The Wire:
0.5m
Buzzer:
>90dB
Shiny Number:
60-70/min
Glow Color:
Red,yellow,green
MOQ:
1 Pcs
Application:
CNC Machine
Functions:
Machine Tool Warning Light
Size:
Large Size
Highlight:

RYG Color LED Signal Tower Light

,

Customization LED Signal Tower Light

,

Customization tower warning light

Product Description

Wholesale CNC Machine signal tower lights tri-color custom for designs stack light durable and elegant

Product nameWholesale CNC Machine signal tower lights tri-color custom for designs stack light durable and elegant
Model numberC7
Input voltageDC24V
Input currentMonochromatic 70mA
Buzzer:15mA
Power1.2W-2W
Protection gradeIP50
Length of the wire0.5m
Light body colorSilver
Light sourcePatch 2835 LED
Light life70000 hours
Surface temperature<50℃
Buzzer>90dB
Shiny number60-70/min
Materiallampshade:PMMA
Lamp shell:ABS
Light Angle360°
Glow colorred,yellow,green
CertificationCE, RoHS
Environment temperature-20~45℃
Storage temperature-40~70℃
Environmental humidity10~90%
Store humidity10~90%

Tailored for automation equipment, security inspection systems, LED packaging machines, alarm systems, SMT equipment, CNC machine tools, mining gear, and more, the OUVJAN-C7 redefines industrial signaling.

  • Custom LOGO Integration: Personalize the lamp body with your brand logo, turning the signal light into a mobile brand showcase on your equipment.
  • High-Volume Alerts: Equipped with a built-in buzzer that delivers over 95dB volume, ensuring warnings cut through even the noisiest factory environments.
  • Long-Lasting LED Performance: Featuring high-brightness LED chips, it boasts a lifespan of 50,000 hours, guaranteeing reliable operation for years.
  • Effortless Installation & Mobility: Its foldable design enables installation anytime, anywhere. With multiple installation methods (long four-hole, four-hole, three-hole), it seamlessly fits into your setup and is easy to transport.
Technical Specifications
  • Current: One color: 70mA; Buzzer: 25mA
  • Flash Frequency: 60-70 Hz/min
  • Buzzer Volume: >95dB
  • IP Rating: IP50 (dust-proof, protected against low-pressure water jets)
  • Temperature Range: <50°C
  • Life Span: 50,000H
  • Material: Body made of ABS; Lens made of PMMA
  • Installation: Fixed securely by screw
Coding Principle (OUJVAN-C7 Series)

Our intuitive coding system helps you configure your ideal signal light:

  1. Model No: C7
  2. Layer: 1 (one-layer design)
  3. Mounting: A (Foldable type)
  4. Voltage: 02 (DC24V)
  5. Function: Options include Steady (B), Red flash (S), Steady with buzzer (F), Red flash with buzzer (T)
  6. Connect Type: T (compatible with both PNP&NPN)
  7. Color: Choose from R (Red), Y (Yellow), G (Green)
