| Brand Name: | VIFAR |
| Model Number: | VF-ZB Series |
| MOQ: | 1 Set |
| Price: | USD 30 - 88 / Set |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 5000 Sets per Month |

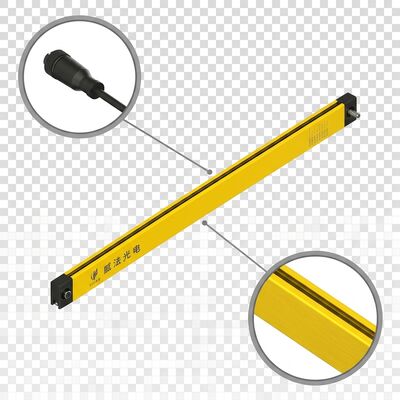

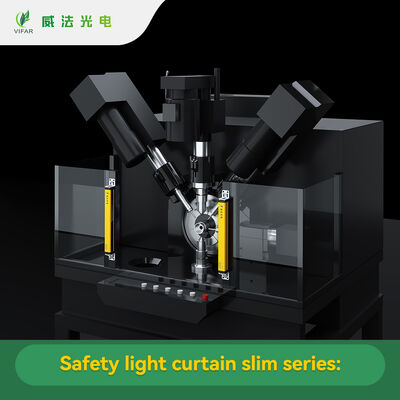

The VF-ZB front thin safety light curtain is built on a 32 x 20 mm profile with the optical axis at the front face, so the bars can sit flat against a machine panel or inside a narrow frame without protruding into the working area. It is the practical choice for robot cells, assembly stations and small automation where the mounting space around the opening is only a few centimetres deep, yet a genuine protective field with a 0.01 to 5 m sensing distance is required.
Key Features| Parameter | Specification |
|---|---|
| Protection height | 60 - 1150 mm (universal range) |
| Beam gap (D) | 10 / 20 / 30 / 40 mm |
| Resolution | 15 / 25 / 35 / 45 mm |
| Number of beams | 4 to 56 beams, 2-beam increments |
| Housing cross section | 32 x 20 mm |
| Supply voltage | DC 10 - 30 V |
| Response time | Less than 5 ms |
| Protective distance | 0.01 - 3 m / 0.01 - 5 m |
| Output signal | PNP / NPN selectable, NC / NO combinations |
| Light curtain form | Through-beam, transmitter and receiver pair |
| Power consumption | Below 5 W |
| Output current | Up to 200 mA |
| Insulation resistance | 100 MΩ or more |
| Dielectric strength | AC 1500 V, 60 s, no breakdown or flicker |
| Synchronization | Line synchronization or optical synchronization |
| Cascading length | Up to 5 m |
| Mounting aperture | A 12 mm reference from the front face |
| Operating temperature | -25 to +60 ℃ |
| Operating humidity | 85% RH maximum at 20 ℃ |
| Protection class | IP50 / IP54 |
| Housing material | Anodized aluminium alloy profile |

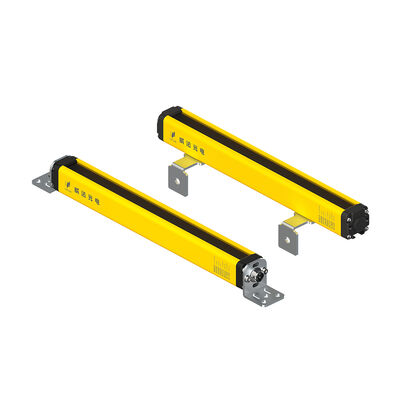

| Mounting | Centre mounting holes, front face installation |
| Beams | Series A (Beam gap 10 mm) Model / H / L / Hole |
Series B (Beam gap 20 mm) Model / H / L / Hole |
Series C (Beam gap 30 mm) Model / H / L / Hole |
Series D (Beam gap 40 mm) Model / H / L / Hole |
|---|---|---|---|---|
| 4 | - | VF-ZB04B H 60 mm L 111 mm Hole 99 mm | VF-ZB04C H 90 mm L 141 mm Hole 129 mm | VF-ZB04D H 120 mm L 176 mm Hole 164 mm |
| 6 | - | VF-ZB06B H 100 mm L 151 mm Hole 139 mm | VF-ZB06C H 150 mm L 201 mm Hole 189 mm | VF-ZB06D H 200 mm L 256 mm Hole 244 mm |
| 8 | VF-ZB08A H 70 mm L 121 mm Hole 109 mm | VF-ZB08B H 140 mm L 191 mm Hole 179 mm | VF-ZB08C H 210 mm L 261 mm Hole 249 mm | VF-ZB08D H 280 mm L 336 mm Hole 324 mm |
| 10 | VF-ZB10A H 90 mm L 141 mm Hole 129 mm | VF-ZB10B H 180 mm L 231 mm Hole 219 mm | VF-ZB10C H 270 mm L 321 mm Hole 309 mm | VF-ZB10D H 360 mm L 416 mm Hole 404 mm |
| 12 | VF-ZB12A H 110 mm L 161 mm Hole 149 mm | VF-ZB12B H 220 mm L 271 mm Hole 259 mm | VF-ZB12C H 330 mm L 381 mm Hole 369 mm | VF-ZB12D H 440 mm L 496 mm Hole 484 mm |
| 14 | VF-ZB14A H 130 mm L 181 mm Hole 169 mm | VF-ZB14B H 260 mm L 311 mm Hole 299 mm | VF-ZB14C H 390 mm L 441 mm Hole 429 mm | VF-ZB14D H 520 mm L 576 mm Hole 564 mm |
| 16 | VF-ZB16A H 150 mm L 201 mm Hole 189 mm | VF-ZB16B H 300 mm L 351 mm Hole 339 mm | VF-ZB16C H 450 mm L 501 mm Hole 489 mm | VF-ZB16D H 600 mm L 656 mm Hole 644 mm |
| 18 | VF-ZB18A H 170 mm L 221 mm Hole 209 mm | VF-ZB18B H 340 mm L 391 mm Hole 379 mm | VF-ZB18C H 510 mm L 561 mm Hole 549 mm | VF-ZB18D H 680 mm L 736 mm Hole 724 mm |
| 20 | VF-ZB20A H 190 mm L 241 mm Hole 229 mm | VF-ZB20B H 380 mm L 431 mm Hole 419 mm | VF-ZB20C H 570 mm L 621 mm Hole 609 mm | VF-ZB20D H 760 mm L 816 mm Hole 804 mm |
| 22 | VF-ZB22A H 210 mm L 261 mm Hole 249 mm | VF-ZB22B H 420 mm L 471 mm Hole 459 mm | VF-ZB22C H 630 mm L 681 mm Hole 669 mm | VF-ZB22D H 840 mm L 896 mm Hole 884 mm |
| 24 | VF-ZB24A H 230 mm L 281 mm Hole 269 mm | VF-ZB24B H 460 mm L 511 mm Hole 499 mm | VF-ZB24C H 690 mm L 741 mm Hole 729 mm | VF-ZB24D H 920 mm L 976 mm Hole 964 mm |
| 26 | VF-ZB26A H 250 mm L 301 mm Hole 289 mm | VF-ZB26B H 500 mm L 551 mm Hole 539 mm | VF-ZB26C H 750 mm L 801 mm Hole 789 mm | VF-ZB26D H 1000 mm L 1056 mm Hole 1044 mm |
| 28 | VF-ZB28A H 270 mm L 321 mm Hole 309 mm | VF-ZB28B H 540 mm L 591 mm Hole 579 mm | VF-ZB28C H 810 mm L 861 mm Hole 849 mm | VF-ZB28D H 1080 mm L 1136 mm Hole 1124 mm |
| 30 | VF-ZB30A H 290 mm L 341 mm Hole 329 mm | VF-ZB30B H 580 mm L 631 mm Hole 619 mm | VF-ZB30C H 870 mm L 921 mm Hole 909 mm | VF-ZB30D H 1160 mm L 1216 mm Hole 1204 mm |
| 32 | VF-ZB32A H 310 mm L 361 mm Hole 349 mm | VF-ZB32B H 620 mm L 671 mm Hole 659 mm | VF-ZB32C H 930 mm L 981 mm Hole 969 mm | VF-ZB32D H 1240 mm L 1296 mm Hole 1284 mm |
| 34 | VF-ZB34A H 330 mm L 381 mm Hole 369 mm | VF-ZB34B H 660 mm L 711 mm Hole 699 mm | VF-ZB34C H 990 mm L 1041 mm Hole 1029 mm | VF-ZB34D H 1320 mm L 1376 mm Hole 1364 mm |
| 36 | VF-ZB36A H 350 mm L 401 mm Hole 389 mm | VF-ZB36B H 700 mm L 751 mm Hole 739 mm | VF-ZB36C H 1050 mm L 1101 mm Hole 1089 mm | VF-ZB36D H 1400 mm L 1456 mm Hole 1444 mm |
| 38 | VF-ZB38A H 370 mm L 421 mm Hole 409 mm | VF-ZB38B H 740 mm L 791 mm Hole 779 mm | VF-ZB38C H 1110 mm L 1161 mm Hole 1149 mm | VF-ZB38D H 1480 mm L 1536 mm Hole 1524 mm |
| 40 | VF-ZB40A H 390 mm L 441 mm Hole 429 mm | VF-ZB40B H 780 mm L 831 mm Hole 819 mm | VF-ZB40C H 1170 mm L 1221 mm Hole 1209 mm | VF-ZB40D H 1560 mm L 1616 mm Hole 1604 mm |
| 42 | VF-ZB42A H 410 mm L 461 mm Hole 449 mm | VF-ZB42B H 820 mm L 871 mm Hole 859 mm | VF-ZB42C H 1230 mm L 1281 mm Hole 1269 mm | VF-ZB42D H 1640 mm L 1696 mm Hole 1684 mm |
| 44 | VF-ZB44A H 430 mm L 481 mm Hole 469 mm | VF-ZB44B H 860 mm L 911 mm Hole 899 mm | VF-ZB44C H 1290 mm L 1341 mm Hole 1329 mm | VF-ZB44D H 1720 mm L 1776 mm Hole 1764 mm |
| 46 | VF-ZB46A H 450 mm L 501 mm Hole 489 mm | VF-ZB46B H 900 mm L 951 mm Hole 939 mm | VF-ZB46C H 1350 mm L 1401 mm Hole 1389 mm | VF-ZB46D H 1800 mm L 1856 mm Hole 1844 mm |
| 48 | VF-ZB48A H 470 mm L 521 mm Hole 509 mm | VF-ZB48B H 940 mm L 991 mm Hole 979 mm | VF-ZB48C H 1410 mm L 1461 mm Hole 1449 mm | VF-ZB48D H 1880 mm L 1936 mm Hole 1924 mm |
| 50 | VF-ZB50A H 490 mm L 541 mm Hole 529 mm | VF-ZB50B H 980 mm L 1031 mm Hole 1019 mm | VF-ZB50C H 1470 mm L 1521 mm Hole 1509 mm | VF-ZB50D H 1960 mm L 2016 mm Hole 2004 mm |
| 52 | VF-ZB52A H 510 mm L 561 mm Hole 549 mm | VF-ZB52B H 1020 mm L 1071 mm Hole 1059 mm | VF-ZB52C H 1530 mm L 1581 mm Hole 1569 mm | VF-ZB52D H 2040 mm L 2096 mm Hole 2084 mm |
| 54 | VF-ZB54A H 530 mm L 581 mm Hole 569 mm | - | - | - |
| 56 | VF-ZB56A H 550 mm L 601 mm Hole 589 mm | - | - | - |

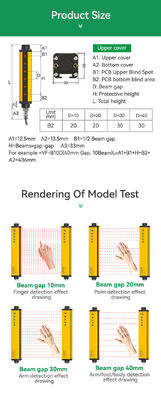

Model code VF-ZB + beam count + beam-gap letter (A = 10 mm, B = 20 mm, C = 30 mm, D = 40 mm). H is the protective height, L the total housing length and Hole the centre mounting hole position measured from the lower end cover. Every two additional optical axes extend H and L by 2 x beam gap.

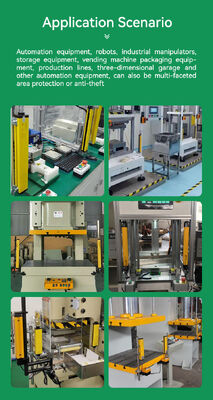

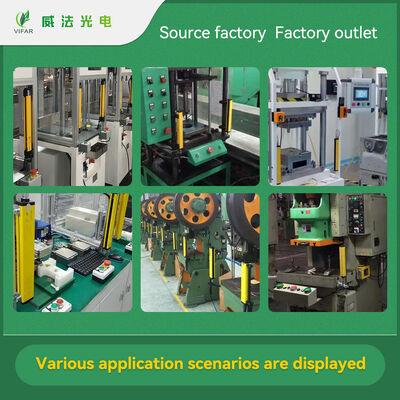

Application and Industry ScenariosTypical users are robot cell builders, assembly and screw-driving stations, small press and riveting machines, labeling and packaging equipment, woodworking machinery, laboratory automation and vertical storage systems. The front-face optical window also suits door frames and sliding guards where the beam must travel parallel to the panel surface, and the -25 ℃ rating opens cold-chain and outdoor enclosure projects in Northern Europe.
Selection and Installation Notes| Question | Answer |
|---|---|
| How thin is the installed assembly? | The bar itself is 20 mm deep; with the standard front mounting the total protrusion beyond the panel is under 24 mm. |
| Can the curtain be mounted vertically and horizontally? | Yes. The profile can be rotated, the only requirement is that the transmitter and receiver windows face each other within the alignment tolerance. |
| What is the difference between IP50 and IP54? | IP50 protects against dust ingress only, IP54 adds splash protection; IP54 is recommended for coolant and washdown areas. |
| Is a mirror set available? | Yes, deflection mirrors can route the field around corners and are quoted together with the pair. |
| Which industries use the front thin series most? | Electronics assembly, small robotics, packaging and laboratory automation, where space around the opening is the limiting factor. |

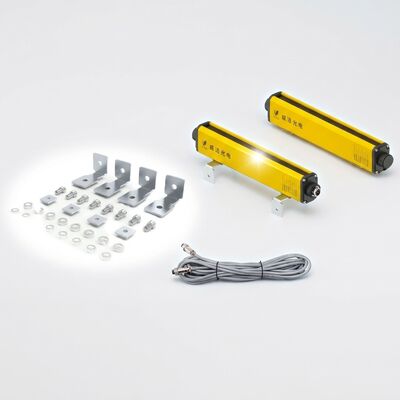

Delivered as a matched pair in a reinforced carton with EPE foam, M4 screws, mounting template, cables, manual and test report. Units are function-tested with the resolution-matched test rod before packing and follow the factory 22-15-7 inspection routine, with environmental, EMC, salt-spray and vibration tests run on the production sample.
