| Brand Name: | VIFAR |
| Model Number: | VF-ZBS Series |
| MOQ: | 1 Set |
| Price: | USD 27 - 79 / Set |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 5000 Sets per Month |

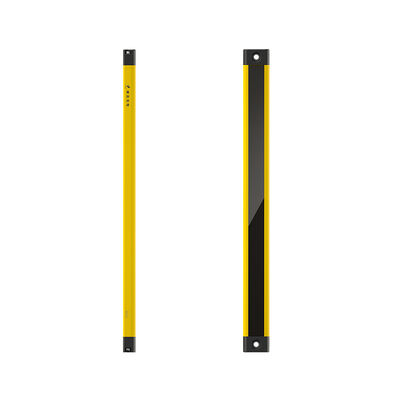

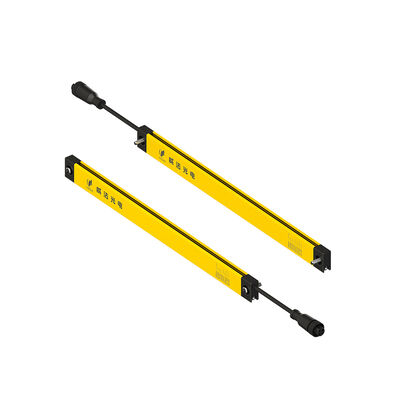

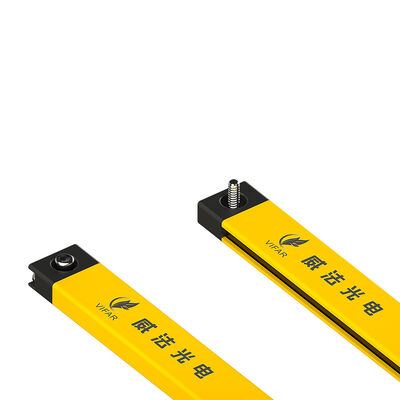

At 25 x 12 mm the VF-ZBS is the thinnest front-mount barrier in the VIFAR catalogue, and it exists for a single reason: guard doors, drawer fronts and small automation frames where even a 20 mm profile does not fit. The 12 mm deep optical window sits flush with the machine surface, the 0.01 to 3 m range keeps the field tight around the opening, and the 3 to 8 W consumption allows the pair to be powered from a machine control cabinet without an extra supply.

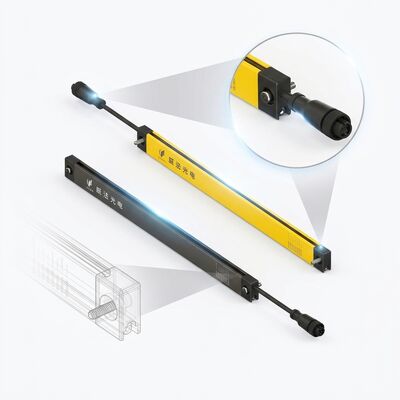

Key Features| Parameter | Specification |
|---|---|
| Protection height | 60 - 1150 mm (universal range) |
| Beam gap (D) | 10 / 20 / 40 mm |
| Resolution | 15 / 25 / 45 mm |
| Number of beams | 4 to 56 beams, 2-beam increments |
| Housing cross section | 25 x 12 mm |
| Supply voltage | DC 10 - 30 V |
| Response time | Less than 5 ms |
| Protective distance | 0.01 - 2 m / 0.01 - 3 m |
| Output signal | PNP / NPN selectable, NC / NO combinations |
| Light curtain form | Through-beam, transmitter and receiver pair |
| Power consumption | 3 - 8 W |
| Output current | Up to 200 mA |
| Insulation resistance | 100 MΩ or more |
| Dielectric strength | AC 1500 V, 60 s, no breakdown or flicker |
| Synchronization | Line synchronization standard, optical synchronization optional |
| Cascading length | Up to 5 m |
| Blind areas | D 10 mm gap: 22 mm total blind area; D 20 mm: 27 mm; D 40 mm: 22 mm |
| Operating temperature | -10 to +60 ℃ |
| Operating humidity | 85% RH maximum at 20 ℃ |
| Protection class | IP50 / IP54 |
| Housing material | Anodized aluminium alloy profile |
| Cables | 1.5 m transmitter and receiver cables |
| Mounting | M4 screws, up-down installation |
| Beams | Series A (Beam gap 10 mm) Model / H / L / Hole |
Series B (Beam gap 20 mm) Model / H / L / Hole |
Series D (Beam gap 40 mm) Model / H / L / Hole |
|---|---|---|---|
| 4 | - | - | VF-ZBS04D H 120 mm L 172 mm Hole 162 mm |
| 6 | - | VF-ZBS06B H 100 mm L 147 mm Hole 137 mm | VF-ZBS06D H 200 mm L 252 mm Hole 242 mm |
| 8 | VF-ZBS08A H 70 mm L 107 mm Hole 97 mm | VF-ZBS08B H 140 mm L 187 mm Hole 177 mm | VF-ZBS08D H 280 mm L 332 mm Hole 322 mm |
| 10 | VF-ZBS10A H 90 mm L 127 mm Hole 117 mm | VF-ZBS10B H 180 mm L 227 mm Hole 217 mm | VF-ZBS10D H 360 mm L 412 mm Hole 402 mm |
| 12 | VF-ZBS12A H 110 mm L 147 mm Hole 137 mm | VF-ZBS12B H 220 mm L 267 mm Hole 257 mm | VF-ZBS12D H 440 mm L 492 mm Hole 482 mm |
| 14 | VF-ZBS14A H 130 mm L 167 mm Hole 157 mm | VF-ZBS14B H 260 mm L 307 mm Hole 297 mm | VF-ZBS14D H 520 mm L 572 mm Hole 562 mm |
| 16 | VF-ZBS16A H 150 mm L 187 mm Hole 177 mm | VF-ZBS16B H 300 mm L 347 mm Hole 337 mm | VF-ZBS16D H 600 mm L 652 mm Hole 642 mm |
| 18 | VF-ZBS18A H 170 mm L 207 mm Hole 197 mm | VF-ZBS18B H 340 mm L 387 mm Hole 377 mm | VF-ZBS18D H 680 mm L 732 mm Hole 722 mm |
| 20 | VF-ZBS20A H 190 mm L 227 mm Hole 217 mm | VF-ZBS20B H 380 mm L 427 mm Hole 417 mm | VF-ZBS20D H 760 mm L 812 mm Hole 802 mm |
| 22 | VF-ZBS22A H 210 mm L 247 mm Hole 237 mm | VF-ZBS22B H 420 mm L 467 mm Hole 457 mm | VF-ZBS22D H 840 mm L 892 mm Hole 882 mm |
| 24 | VF-ZBS24A H 230 mm L 267 mm Hole 257 mm | VF-ZBS24B H 460 mm L 507 mm Hole 497 mm | VF-ZBS24D H 920 mm L 972 mm Hole 962 mm |
| 26 | VF-ZBS26A H 250 mm L 287 mm Hole 277 mm | VF-ZBS26B H 500 mm L 547 mm Hole 537 mm | VF-ZBS26D H 1000 mm L 1052 mm Hole 1042 mm |
| 28 | VF-ZBS28A H 270 mm L 307 mm Hole 297 mm | VF-ZBS28B H 540 mm L 587 mm Hole 577 mm | VF-ZBS28D H 1080 mm L 1132 mm Hole 1122 mm |
| 30 | VF-ZBS30A H 290 mm L 327 mm Hole 317 mm | VF-ZBS30B H 580 mm L 627 mm Hole 617 mm | VF-ZBS30D H 1160 mm L 1212 mm Hole 1202 mm |
| 32 | VF-ZBS32A H 310 mm L 347 mm Hole 337 mm | VF-ZBS32B H 620 mm L 667 mm Hole 657 mm | VF-ZBS32D H 1240 mm L 1292 mm Hole 1282 mm |
| 34 | VF-ZBS34A H 330 mm L 367 mm Hole 357 mm | VF-ZBS34B H 660 mm L 707 mm Hole 697 mm | VF-ZBS34D H 1320 mm L 1372 mm Hole 1362 mm |
| 36 | VF-ZBS36A H 350 mm L 387 mm Hole 377 mm | VF-ZBS36B H 700 mm L 747 mm Hole 737 mm | VF-ZBS36D H 1400 mm L 1452 mm Hole 1442 mm |
| 38 | VF-ZBS38A H 370 mm L 407 mm Hole 397 mm | VF-ZBS38B H 740 mm L 787 mm Hole 777 mm | VF-ZBS38D H 1480 mm L 1532 mm Hole 1522 mm |
| 40 | VF-ZBS40A H 390 mm L 427 mm Hole 417 mm | VF-ZBS40B H 780 mm L 827 mm Hole 817 mm | VF-ZBS40D H 1560 mm L 1612 mm Hole 1602 mm |
| 42 | VF-ZBS42A H 410 mm L 447 mm Hole 437 mm | VF-ZBS42B H 820 mm L 867 mm Hole 857 mm | VF-ZBS42D H 1640 mm L 1692 mm Hole 1682 mm |
| 44 | VF-ZBS44A H 430 mm L 467 mm Hole 457 mm | VF-ZBS44B H 860 mm L 907 mm Hole 897 mm | VF-ZBS44D H 1720 mm L 1772 mm Hole 1762 mm |
| 46 | VF-ZBS46A H 450 mm L 487 mm Hole 477 mm | VF-ZBS46B H 900 mm L 947 mm Hole 937 mm | VF-ZBS46D H 1800 mm L 1852 mm Hole 1842 mm |
| 48 | VF-ZBS48A H 470 mm L 507 mm Hole 497 mm | VF-ZBS48B H 940 mm L 987 mm Hole 977 mm | VF-ZBS48D H 1880 mm L 1932 mm Hole 1922 mm |
| 50 | VF-ZBS50A H 490 mm L 527 mm Hole 517 mm | VF-ZBS50B H 980 mm L 1027 mm Hole 1017 mm | VF-ZBS50D H 1960 mm L 2012 mm Hole 2002 mm |
| 52 | VF-ZBS52A H 510 mm L 547 mm Hole 537 mm | VF-ZBS52B H 1020 mm L 1067 mm Hole 1057 mm | VF-ZBS52D H 2040 mm L 2092 mm Hole 2082 mm |
| 54 | VF-ZBS54A H 530 mm L 567 mm Hole 557 mm | VF-ZBS54B H 1060 mm L 1107 mm Hole 1097 mm | - |
| 56 | VF-ZBS56A H 550 mm L 587 mm Hole 577 mm | - | - |

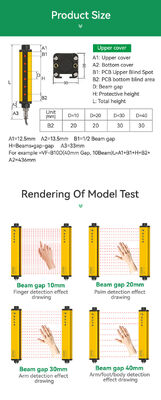

Model code VF-ZBS + beam count + beam-gap letter (A = 10 mm, B = 20 mm, D = 40 mm). H is the protective height, L the total length including end covers and Hole the centre mounting hole position. Every two additional optical axes add 2 x beam gap to H and L.

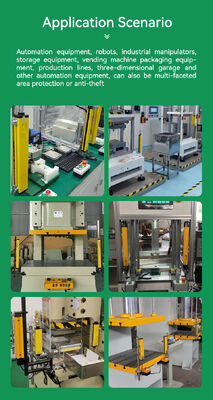

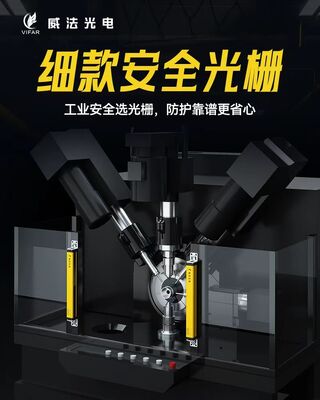

Application and Industry ScenariosThe ZBS series is used on safety doors and sliding guards, drawer-type test fixtures, small assembly benches, semiconductor and electronics production equipment, medical and laboratory automation, packaging machines with restricted frames and vertical storage lift openings. Where a 25 mm wide bar is the maximum that a rebuilt guard can carry, this is the barrier that keeps the protective field inside the original machine envelope.
Selection and Installation Notes| Question | Answer |
|---|---|
| How does ZBS differ from ZB? | ZBS is the 25 x 12 mm ultra-thin body for the tightest openings; ZB uses a 32 x 20 mm body and reaches 5 m sensing distance with 30 mm beam gap options. |
| Can it be used on a moving guard door? | Yes, when the door is not used as a physical guard but as an access point; the barrier detects entry before the operator reaches the hazard. |
| What cable length is standard? | Both bars are supplied with 1.5 m cables; extension cables and connectors are available. |
| Is a 30 mm beam gap available? | The ZBS range covers 10, 20 and 40 mm gaps; for 30 mm gaps choose the VF-ZB series. |
| Does the pair need a separate controller? | No, the receiver provides PNP or NPN transistor outputs that connect directly to a safety relay or safety PLC. |

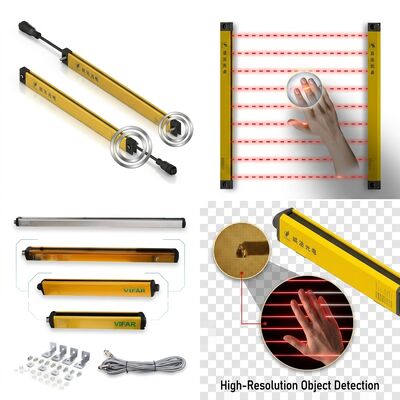

Each pair is packed in a reinforced carton with EPE foam, M4 screws, cables, manual and test report. Cartons are export grade and can be palletized. Production follows the standard VIFAR inspection chain of 22 incoming checks, 15 in-process controls and 7 OBA checks, with EMC, environmental, salt-spray and vibration tests performed on the production sample.
