Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp
All Category

Safety Light Curtain

Safety Curtain Sensor

Signal Tower Lamp

Machine Tower Lamp

Tower Warning Light

LED Tower Lamp

LED Indicator Lamp

LED Signal Tower Light

CNC Machine Lamp

LED Machine Work Light

Gooseneck Work Lamp

Nameplate Light
Contact Us
Miss. Judy
judy@oujvan.com
008618922811845
Chat Now

Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp

Brand Name: OUJVAN
MOQ: 2 pieces
Price: $8/piece-$13/piece
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Color Temperature(CCT):
RYG
IP Rating:
IP50
Lamp Body Material:
PMMA
Light Source:
LED
Beam Angle(°):
360
Color Rendering Index(Ra):
80
Emitting Color:
Red, Yellow, Green
Input Voltage(V):
DC24V DC12V AC220V Optional
Lamp Luminous Efficiency(lm/w):
80
Lamp Luminous Flux(lm):
400
Lifespan (Hours):
70000
Product Weight（kg）:
0.8
Support Dimmer:
No
Type:
Equipment Indicator Lights
Warranty(Year):
3-Year
Product Name:
Q11 Signal Indicator Light
Input Voltage:
DC24V
Protection Grade:
IP50
Length Of The Wire:
0.5m
Buzzer:
>90dB
Shiny Number:
60-70/min
Glow Color:
Red,yellow,green
Lamp Body Color:
Silvery
Application:
CNC Machine Signal Tower Lighting
Functions:
Industrial Warning Light
Product Description

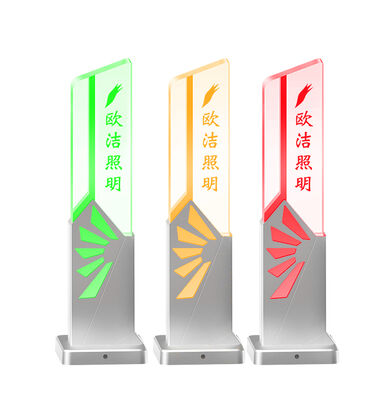

LED Q11 Signal Indicator Light: Comprehensive Industrial Status Signaling with Long-Life & Efficient Performance
Product Overview

The LED Q11 Signal Indicator Light is a cutting-edge industrial signaling solution designed for efficient operational status communication. It features a unique square design with high-transparent crystal full frosted luminescence, offering an innovative appearance while delivering comprehensive functions and excellent cost performance.

Key Advantages
  1. Optical Excellence: Utilizes bright LED patch technology, ensuring high brightness, a large illumination angle, low thermal resistance, color concentration, an ultra-low light decay process, and an exceptionally long lifespan.
  2. Reliable Circuit Design: Incorporates a wide margin circuit and high-quality components, providing comprehensive protection for the overall lifespan of the lamp.
  3. Safe & Efficient Electronics: Internal electronic components are arranged rationally, guaranteeing the safe and efficient operation of the lamp.
Performance Specifications
  • Current: 60mA per color, 15mA for the buzzer.
  • Flash Frequency: 60–70 Hz/min.
  • Buzzer Volume: >95dB.
  • IP Rating: IP54 (dust and water-splash resistant).
  • Temperature Resistance: <60°C.
  • Lifespan: 50,000 hours.
  • Installation: Fixed by screw.
  • Material: ABS body for durability.
  • Voltage & Compatibility: Operates on DC24V, compatible with both PNP and NPN connections.
Customization & Coding Principle

The LED Q11 offers customization in color (red, yellow, green) and function (steady light or steady light with buzzer). Its coding principle is structured as follows:

  • Model No: Q11
  • Layer: 1 (one-layer)
  • Mounting: Foldable type (A)
  • Voltage: DC24V (02)
  • Function: Steady (B) or Steady with buzzer (F)
  • Connect Type: PNP&NPN (T)
  • Color: Red (R), Yellow (G), Green (Y)

This signal indicator light combines aesthetic design, robust performance, and flexible customization, making it an ideal choice for industrial environments that demand clear, reliable, and efficient status signaling.

Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 0
Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 1
Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 2
Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 3
Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 4
Product name Q11 Signal indicator light
Input voltage DC24V
Protection grade IP50
Length of the wire 0.5m
Buzzer >90dB
Shiny number 60-70/min
Glow color red,yellow,green
Lamp body color silvery
Operation Life 70,000 hours
Power 1.2W～2W
Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 5
Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 6
   Q11 DC24V PNP NPN LED Signal Indicator Light | IP54 Industrial Tower Warning Lamp 7
