| Brand Name: | VIFAR |
| Model Number: | VSD-K6 |
| Shell Material | PA66 Flame retardant |
| Contact Material | Silver alloy gold plating |

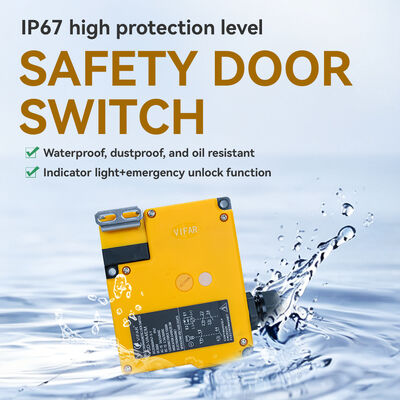

| Protection Grade | IP67 (EN60947-5-01, Except for the key operation hole) |
| Service Life | Mechanical: over 1 million cycles; Electrical: over 150,000 cycles |
| Tensile Strength during locking | 1300N |
| Rated Insulation Voltage | 300V |
| Rated Impulse Withstand Voltage | 2.5KV |
| Rated Open Thermal Current | 10A |
| Utilization Category | AC-15 | DC-13 |
| Rated Operational Voltage | 240V(AC) | 30V(DC) |
| Rated Working Current | 3A(AC) | 2.3A(DC) |
| Rated Conditional Short-circuit Current | 1000A |
| Forced detachment from action force | ≥60N |
| Forced Separation Distance | ≥10mm |
| Allow Operation Speed | 0.05~0.5m/s |
| Max Operating Frequency | 20 operations per minute |
| Ambient Temperature | -20℃~60℃, No freeze |
| Ambient Humidity | ≤85%RH |
| Solenoid Rated Voltage | DC24V ±10% |
| Solenoid Rated Current | 200mA (Initial value), Power 4.8W |
| Pilot Lamp | 24VDC, 1mA, Green |
| Tube Mouth Size | M16 |
| Model | Locking / Releasing Method | Contact Type (Door monitoring + lock monitoring) |
|---|---|---|
| VSD-K6-XD4ES | Mechanical locking, Electromagnetic release | 2NC/1NO+2NC/1NO |
| VSD-K6-VB4ES | Mechanical locking, Electromagnetic release | 3NC+2NC/1NO |
| VSD-K6-VC4ES | Mechanical locking, Electromagnetic release | 2NC/1NO+3NC |
| VSD-K6-FD4ES | Mechanical locking, Electromagnetic release | 3NC+3NC |
| VSD-K6-XD7ES | Electromagnetic locking, Mechanical release | 2NC/1NO+2NC/1NO |
| VSD-K6-VB7ES | Electromagnetic locking, Mechanical release | 3NC+2NC/1NO |
| VSD-K6-VC7ES | Electromagnetic locking, Mechanical release | 2NC/1NO+3NC |
| VSD-K6-FD7ES | Electromagnetic locking, Mechanical release | 3NC+3NC |
