Signal Tower Lamp
>
Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools
All Category

Safety Light Curtain

Safety Curtain Sensor

Signal Tower Lamp

Machine Tower Lamp

Tower Warning Light

LED Tower Lamp

LED Indicator Lamp

LED Signal Tower Light

CNC Machine Lamp

LED Machine Work Light

Gooseneck Work Lamp

Nameplate Light
Contact Us
Miss. Judy
judy@oujvan.com
008618922811845
Chat Now

Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools

Brand Name: OUJVAN
MOQ: 2 pieces
Price: $10.50/pieces 2-99 pieces
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Application:
MACHINE, CNC Machine
Lamp Body Material:
ABS+PPC
Lifespan (Hours):
50000
Warranty(Year):
2-Year
Product Name:
Machine Tool Led Signal Warning Flashing Work Tower Light
Input Voltage:
DC24V /AC220V /DC12V Optional
Protection Grade:
IP54 Without Buzzer IP50 With Buzzer
Length Of The Wire:
0.5m
Buzzer:
>95dB
Shiny Number:
60-70/min
Glow Color:
Red,yellow,green
MOQ:
2 Pcs
Installation:
Collapsible Type
Highlight:

50000 Hours Lifespan Signal Tower Lamp

,

Tri-Color LED Warning Light

,

IP54 Protection Machine Signal Light

Product Description
OUJVAN Tri-Color LED Warning Lights
High Quality Patch 2835 Light Source Machine Tool LED Signal Warning Flashing Work Tower Light for DC24V, DC12V, and AC220V applications with RYGBW machine signal lights.
Product Specifications
SpecificationDetails
Model NumberQ1
Input VoltageDC24V, DC12V, AC110V-AC220V (optional)
Input CurrentMonochromatic: 30-70mA, Buzzer: 15mA
Power1.2W-2W
Protection GradeIP53/IP65
Wire Length0.5m
Light Body ColorBlack / White

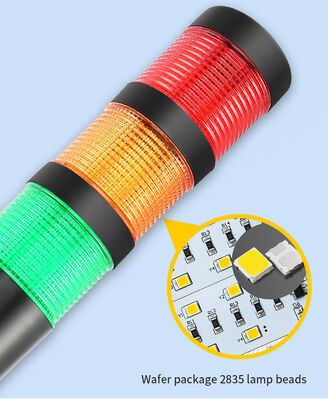

Light SourcePatch 2835 LED
Light Life50,000 hours
Surface Temperature<50℃
Buzzer Volume>95dB
Flash Frequency60-70/min
MaterialLampshade: PC, Lamp Shell: ABS
Light Angle360°
Glow ColorsRed, Yellow, Green
CertificationCE, RoHS
Environment Temperature-20~45℃
Storage Temperature-40~70℃
Environmental Humidity10~90%
Store Humidity10~90%
Product Overview
The Q1 Series is a multilayer warning light designed for machine tools, featuring strong materials, precision machining, and efficient performance. Available in black and white variants with multiple mounting bases to suit diverse industrial setups.
Technical Specifications
  • Current: 50mA per color, 25mA for buzzer
  • Flash Frequency: 60-70 Hz/min
  • Buzzer Volume: >95dB
  • IP Rating: IP53 (with buzzer) or IP65 (without buzzer)
  • Temperature Resistance: <60°C
  • Lifespan: 50,000 hours
  • Installation: Fixed by screw
  • Material: ABS body, PC lens, and ABS base
Coding Principle & Customization
The Q1 Series offers extensive customization via its coding system:
  • Model No: Q1

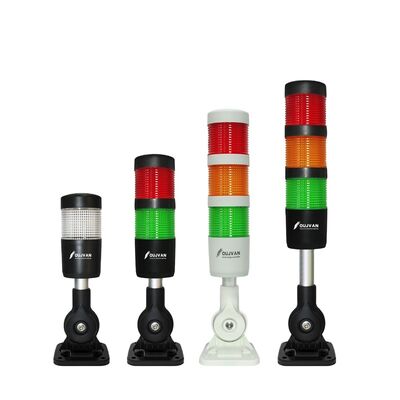

  • Layer: One-layer, two-layer, three-layer, or four-layer
  • Mounting: Collapsible (A) or threaded rod installation (E)
  • Voltage: DC12V (01), DC24V (02), or AC220V (03)
  • Function: Steady (B), Red flash (S), Steady with buzzer (F), or Red flash with buzzer (C)
  • Connect Type: PNP&NPN (T) or Contact type (C)
  • Color: Red (R), Yellow (Y), Green (G)
  • Diameter: 50mm (φ50) or 60mm (φ60)
  • Light Body: White (W) or Black (B)
Features & Design

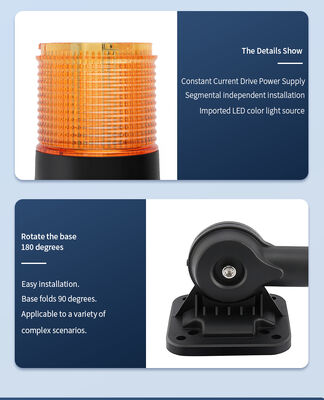

  • Light Source & Power: Utilizes constant current drive power supply and imported LED color light sources for luminous equilibrium. Supports segmental independent installation.
  • Base Design: The base can rotate 180 degrees and fold 90 degrees, enabling easy installation and adaptability to complex scenarios.
  • Durability & Performance: Features wafer encapsulation, high and low temperature resistance, and a loud, clear buzzer for effective warnings.
Applications
Ideal for machine tools, automated production lines, and other industrial equipment requiring clear operational status signaling.

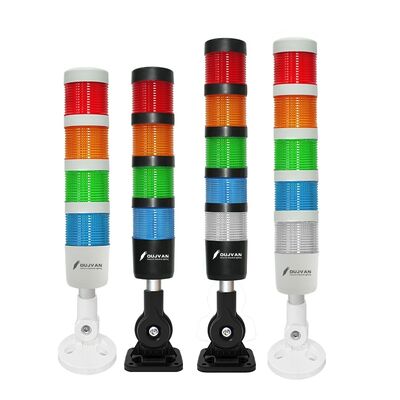

Product Images
Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 0 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 1 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 2 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 3 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 4 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 5 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 6 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 7 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 8 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 9 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 10 Tri-Color LED Signal Tower Lamp with 50000 Hours Lifespan and IP54 Protection for Machine Tools 11
Frequently Asked Questions
Q: How to order your product?
A: 1) Please tell us the model and quantity and other requirements you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order after receiving your payment.
4) After the goods are finished, we ship them and provide tracking number.
5) We track your goods until you receive them.
Q: What's your warranty?
A: One year
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. We compare and provide the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ = 2pcs
Q: What payment methods do you accept?
A: We accept T/T, Paypal, Western Union, L/C.
Q: What's the ordering process?
A: Send inquiry via Alibaba or email, we reply within 24 hours.
Thank you & please send your inquiry!
