VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety

Brand Name: VF
Model Number: VF-B
Price: $24-138/pieces
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE Type-4
Features:
Good Safety, Anti-sesmic, Temper-resistance
Series:
Safety Light Curtain
Mounting Type:

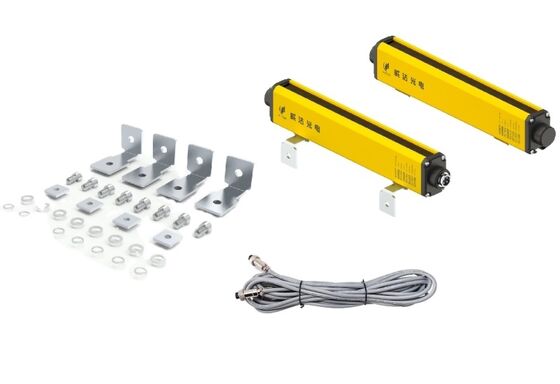

Lateral L-bracket Installation
Description:
Large Numerical Control Equipment, Large Punch
Type:
Safety Light Curtain
Usage:
Large Numerical Control Equipment, Large Punch
Theory:
Thru-beam
Output:
NPN/PNP Optional
Protective Height:
60-1150mm Universal
Beam Gap:
10/20/30/40mm Optional
Beams:
4,6,8,10,12....
Resolution:
15,25,35,45mm
Output Current:
<=200mA
Power:
<5W
Output Signal:
NPN/PNP Optional
Cross-section:
30*30mm
Highlight:

Millisecond-Level Response Safety Light Curtain

,

10mm Beam Gap Safety Grating

,

30m Detection Distance Light Curtain Sensor

Product Description

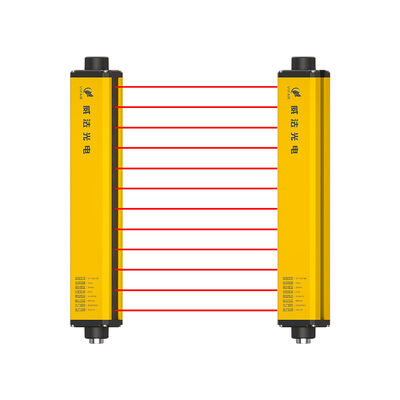

VIFAR Safety Light Curtains
Millisecond-level ultra-fast response with beam pitches of 10mm, 20mm, 30mm, and 40mm. Detection distance covers 0.2m to 25m for comprehensive industrial safety protection.
Product Overview
VIFAR Light Curtain Safety Grating provides reliable safety sensing with 10mm beam pitch for precise detection and protection in industrial environments.
Product NameVIFAR Light Curtain Safety Grating Beam Pitch 10mm Safety Light Curtain Safety Sensor
Model NumberVF-B Universal Type
Protective Height60-1150mm (Universal)
Beam Gap10/20/30/40mm
Resolution15/25/35/45mm
Beams4,6,8,10,12
Protective Distance5m, 10m, 15m, 25m, 30m
Output Current≤200mA
Power<5W
Output SignalNPN/PNP
Response Time<5ms
Cross-section30×30mm
Operating VoltageDC10-DC32V
Light Curtain FormThrough-Beam
Dielectric StrengthAC1500V, 60S (No breakdown or flicker)
Work Ambient HumidityRelative humidity at 20℃ <85%
Anti-light InterferenceIncidence Angle >5°
CertificationCE, RoHS
Shell Protection ClassIP54

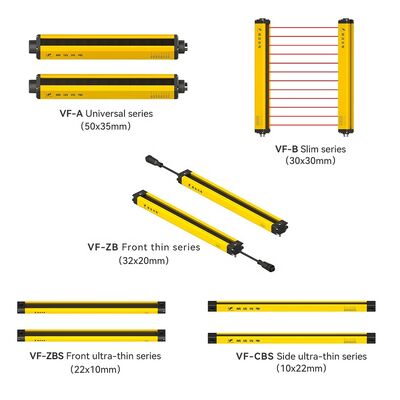

Sizes Available30×35mm / 35×50mm / 32×25mm / 32×20mm / 25×12mm / 10×22mm (optional)
Application
Ideal for equipment with mechanical hazards (rotation, shearing, extrusion) where personnel frequently access dangerous zones, such as manual loading/unloading and debugging. Acts as a reliable safety barrier to prevent accidents in industrial environments.
Feature Highlights
  • Robust Aluminum Alloy Housing: Crafted from high-strength, corrosion-resistant aluminum alloy ensuring durability and long-term performance in harsh industrial settings.
  • Versatile Sizing & Detection Options: Available in sizes like 30×35, 35×50, 32×25, etc. Offers four detection gaps (10/20/30/40mm) and maximum detection range of 30 meters, adapting to diverse machinery layouts.
  • Customizable Aesthetics: Choose from three color options—yellow, gold, and silver—to seamlessly match your workspace's style.
Top-Tier Performance & Safety
Powered by ATmega168 chip for exceptional stability and responsiveness with ultra-fast response time. Compliant with EU standards (CE certified, Safety Level 4) and trusted globally.
Technical Reliability
Operating voltage: DC10-DC32V; Output: PNP/NPN (optional); Protection Class: IP50/IP54. Features anti-optical interference (incidence angle <5°), insulation resistance ≥100MΩ, and dielectric strength AC1500V/60S, guaranteeing safe and stable operation.
Why Choose Our Safety Light Curtain?
With its combination of robust build, customizable design, and industry-leading safety certifications, this light curtain is the ultimate solution for safeguarding personnel and machinery in high-risk industrial scenarios. Elevate your workspace's safety standards while ensuring operational efficiency—trusted by manufacturers worldwide.
Product Images
VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 0 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 1 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 2 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 3 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 4 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 5 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 6 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 7 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 8 VIFAR Safety Light Curtain with Millisecond-Level Response 10mm Beam Gap and 30m Detection Distance for Industrial Safety 9
Frequently Asked Questions
How to order our product?
  1. Please tell us the model and quantity and other requests you need.
  2. We make the PI for you.
  3. After you confirm the PI, we arrange the order after receiving your payment.
  4. After the goods are finished, we send them out and provide tracking number.
  5. We track your goods until you receive them.
What's your warranty?
One year
What's your shipment method?
We ship by Express, by air, by sea, by train. Normally we check and compare, then provide customer the most proper shipment method.
What's about MOQ?
First order MOQ = 1 piece
If I want to place order, what's the payment method you accept?
We accept T/T, Paypal, Western Union, L/C.
If I want to place order, what's the process?
You can send inquiry to us by Alibaba, or send us by email. We will reply within 24 hours.
Thank you & Please send your inquiry!
